Mortar Break® is designed to prevent mortar droppings from blocking and clogging base wall and head joint drainage channels for 2” (50mm) cavity wall applications.
Additional Information, Details, and Resources
A. Install mortar deflection devices as part of masonry wall construction and in accordance with manufacturer’s installation instructions.
B. Install in cavities at all through wall masonry flashings with weep holes.
[locations detailed on Drawings.]

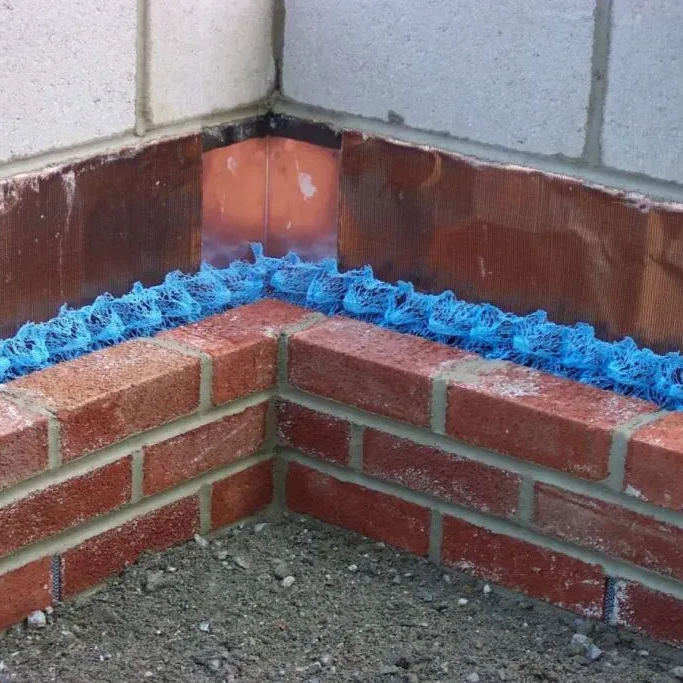

C. Place deflection strips horizontally and diagonally directly on flashings
Mortar Break® & Mortar Break® II Details
Mortar Break® & Mortar Break® II Detail

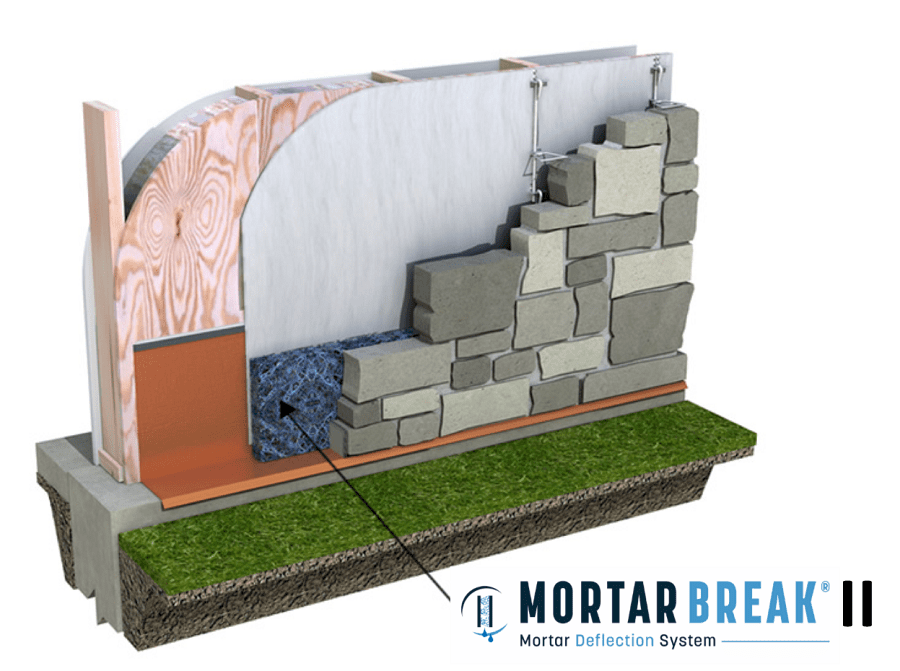

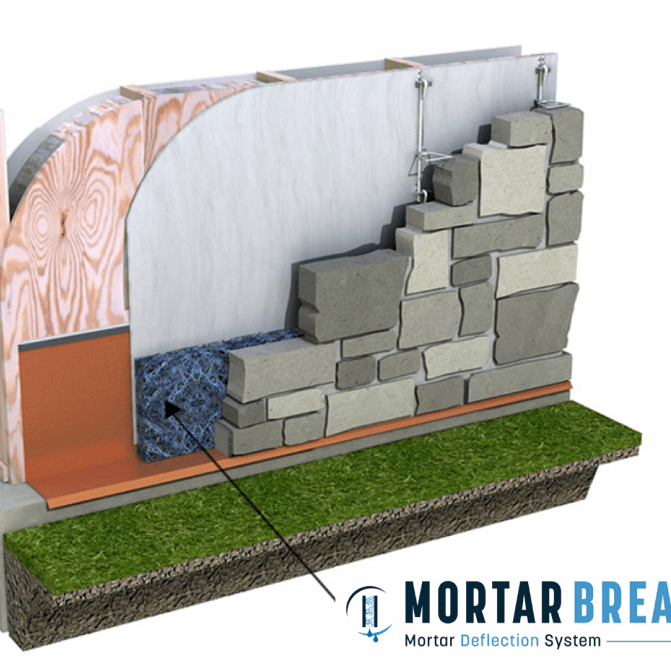

Mortar Break® & Mortar Break® II Rendering (With Callouts)

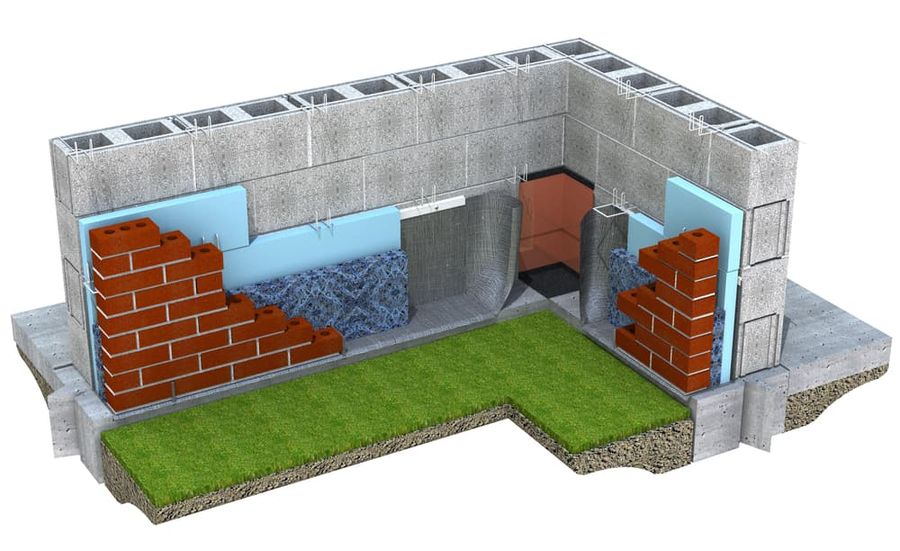

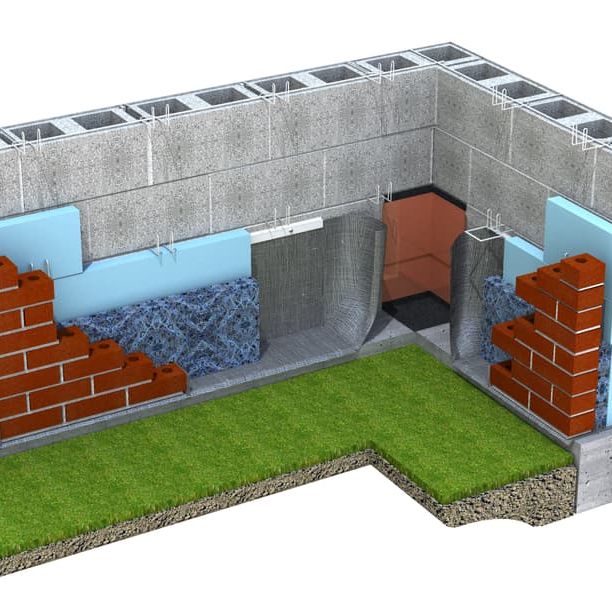

Mortar Break® & Mortar Break® II Rendering (Cavity Wall – Outside Corner)

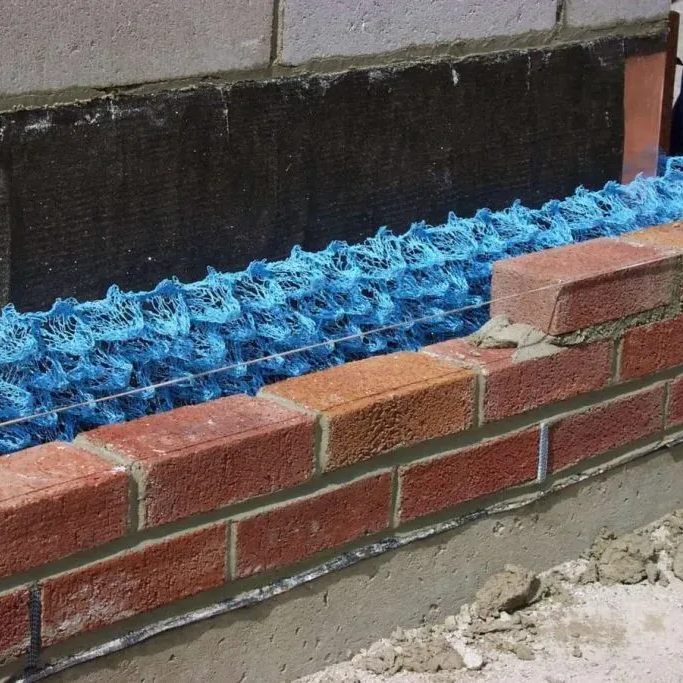

Mortar Break® & Mortar Break II Cavity Wall with Brick Rendering

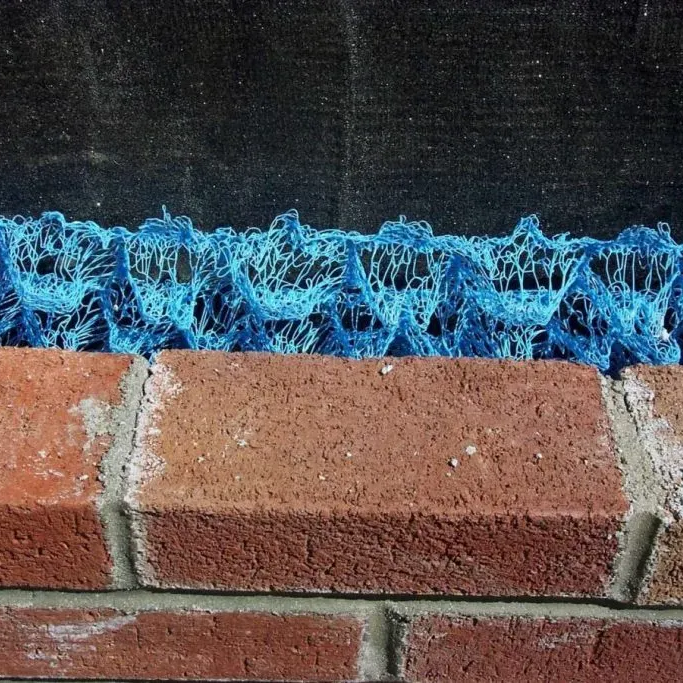

Mortar Break & Mortar Break® II Rendering (Up Close)
Mortar Break® II Isometric Detail (Brick Veneer)
| Mortar Deflection | Thickness | Roll Size | LF Per Box | Rolls Per Pallet | UOM |
|---|---|---|---|---|---|
| Mortar Break® 2 (II) | 1.60” (40 mm) | 10” X 35’ | 140 | 32 | Lineal Foot |
Advanced Building Products Incorporated (“Advanced Building Products”) covers certain products under a Limited 25 Year Warranty. For details or to file a warranty claim, please contact:
