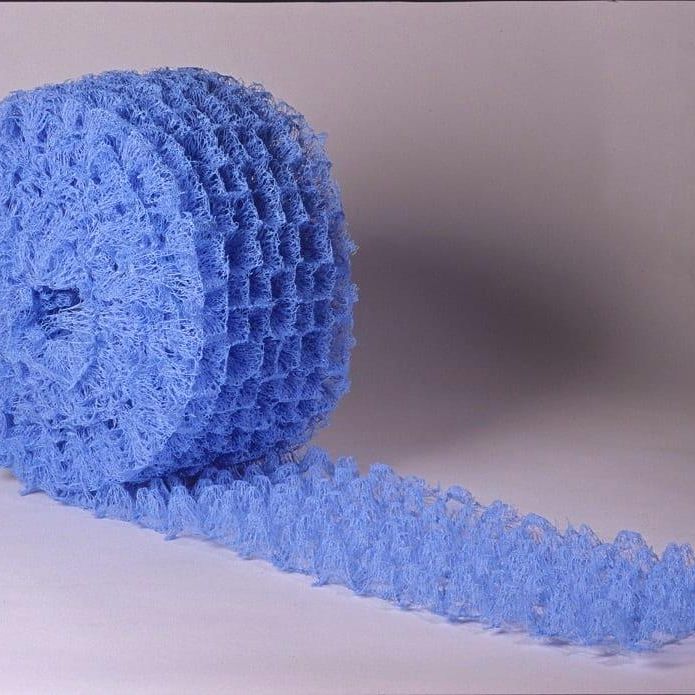

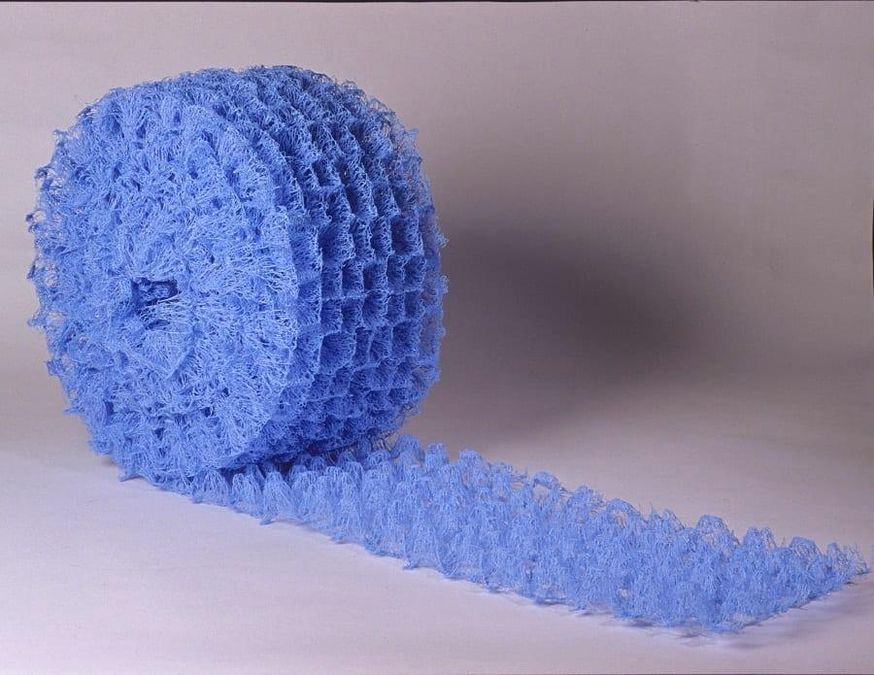

Mortar Break® is designed to prevent mortar droppings from blocking and clogging head joint drainage channels at all flashing locations for masonry cavity wall applications. Mortar Break® suspends excess mortar droppings above the weep holes and allows moisture within the cavity to drain down the flashing and out of the wall. The system also helps to maintain an airspace for ventilation and drying of the wall cavity.
Additional Information, Details, and Resources
A. Install mortar deflection devices as part of masonry wall construction and in accordance with manufacturer’s installation instructions.
B. Install in cavities at all through wall masonry flashings with weep holes.
[locations detailed on Drawings.]
C. Place deflection strips horizontally and diagonally directly on flashings.
Mortar Break® & Mortar Break® II Details
Mortar Break® & Mortar Break® II Detail

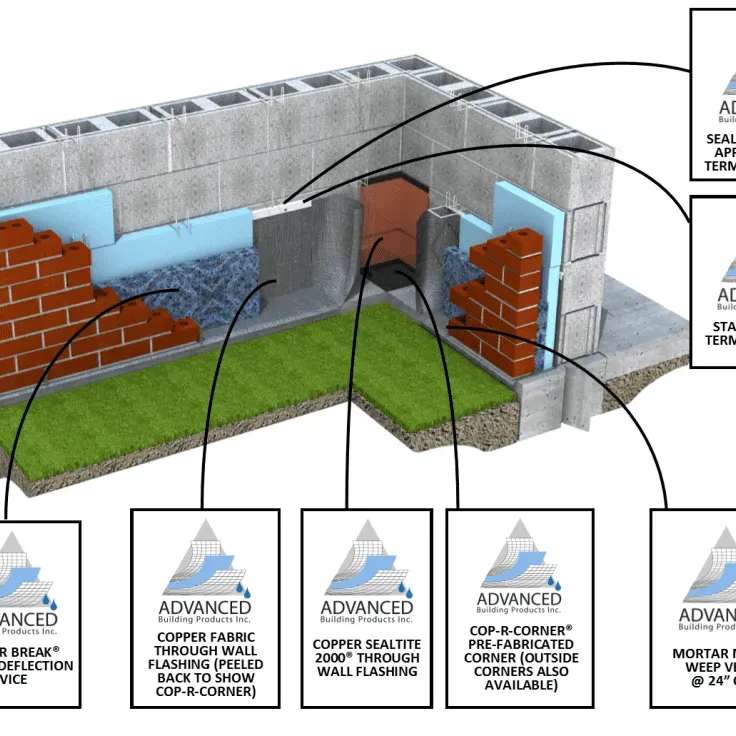

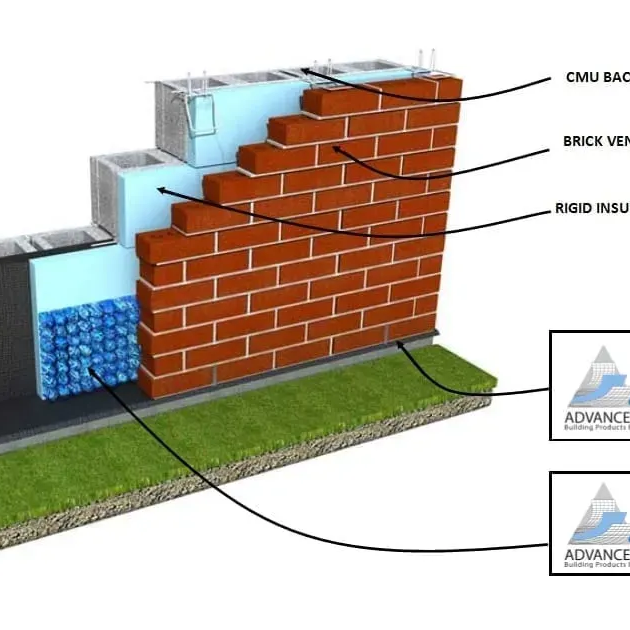

Mortar Break® & Mortar Break® II Rendering (With Callouts)

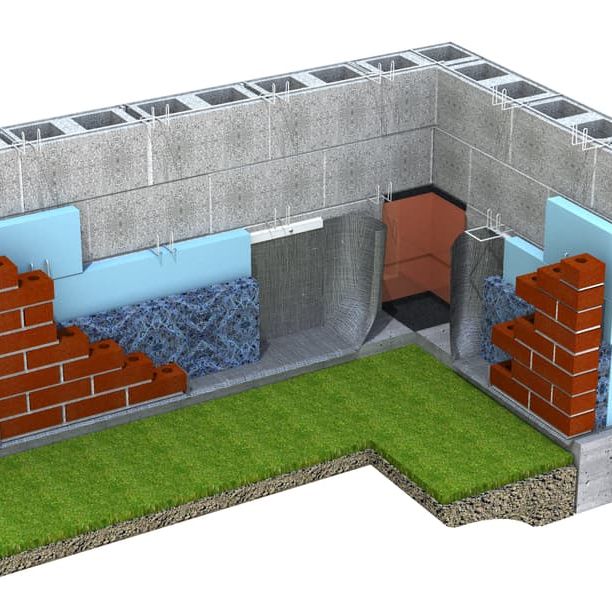

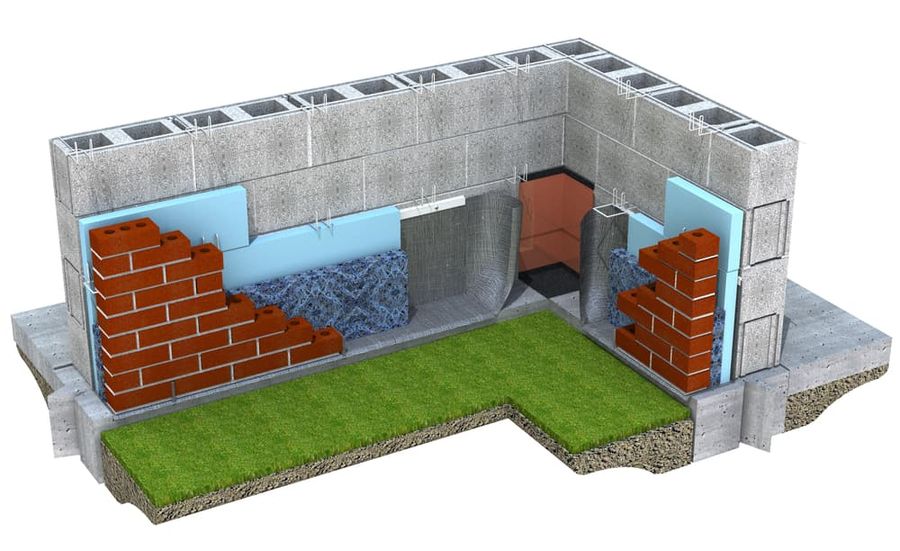

Mortar Break® & Mortar Break® II Rendering (Cavity Wall – Outside Corner)

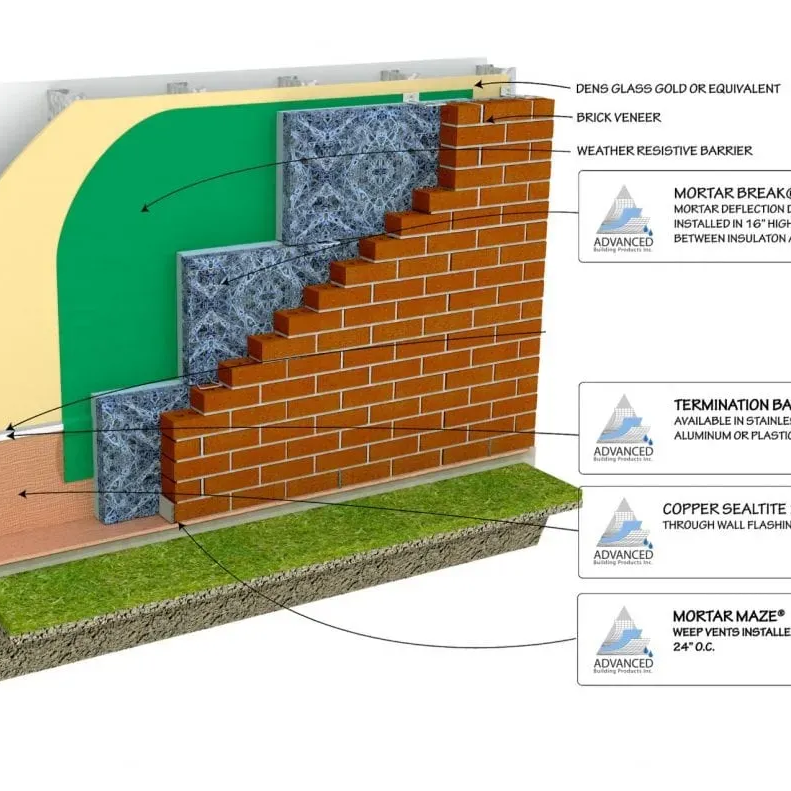

Mortar Break® & Mortar Break II Cavity Wall with Brick Rendering

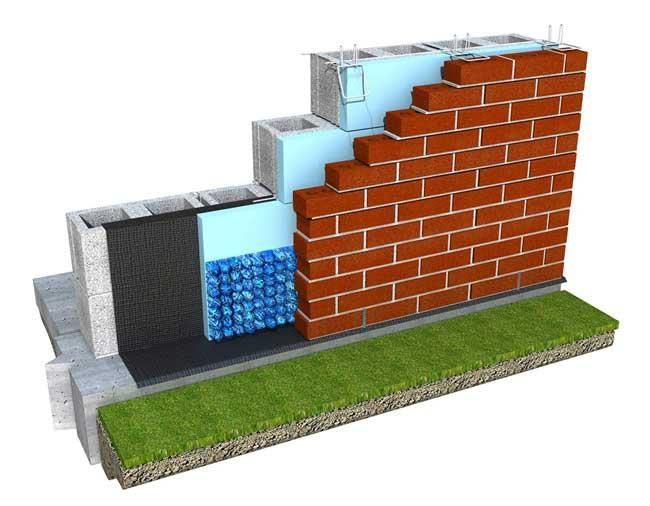

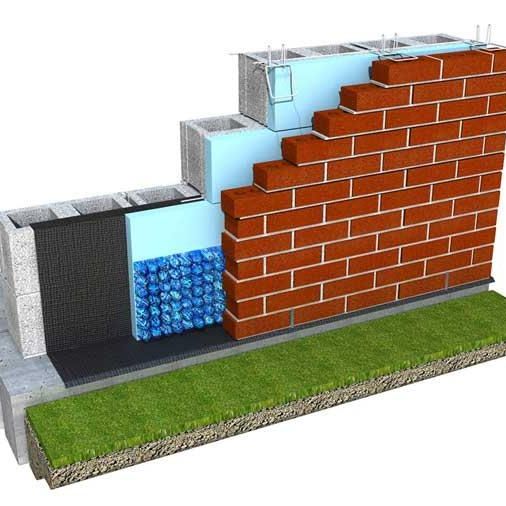

Mortar Break & Mortar Break® II Rendering (Up Close)
Mortar Break® II Isometric Detail (Brick Veneer)
| Mortar Deflection | Thickness | Roll Size | LF Per Box | Rolls Per Pallet | UOM |
| Mortar Break® | .80” (20 mm) | 10” X 50’ | 200 | 32 | Lineal Foot |
| Mortar Break® | .80” (20 mm) | 13” X 50’ | 150 | 32 | Lineal Foot |
| Mortar Break® | .80” (20 mm) | 16” X 50’ | 100 | 16 | Sq. Ft. |
| Mortar Break® | .80” (20 mm) | 20” X 50’ | 100 | 16 | Sq. Ft. |
| Mortar Break® | .80” (20 mm) | 39” X 50’ | 50 | 8 | Sq. Ft. |
