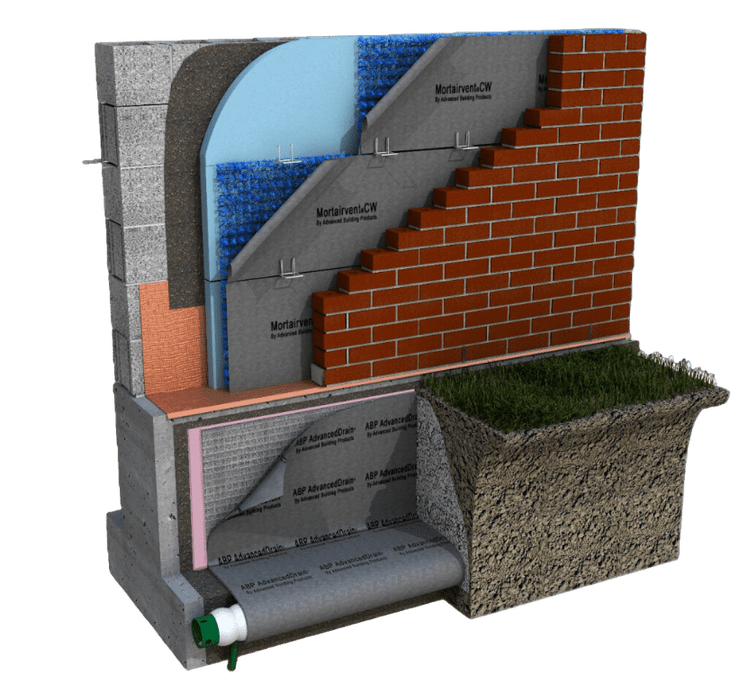

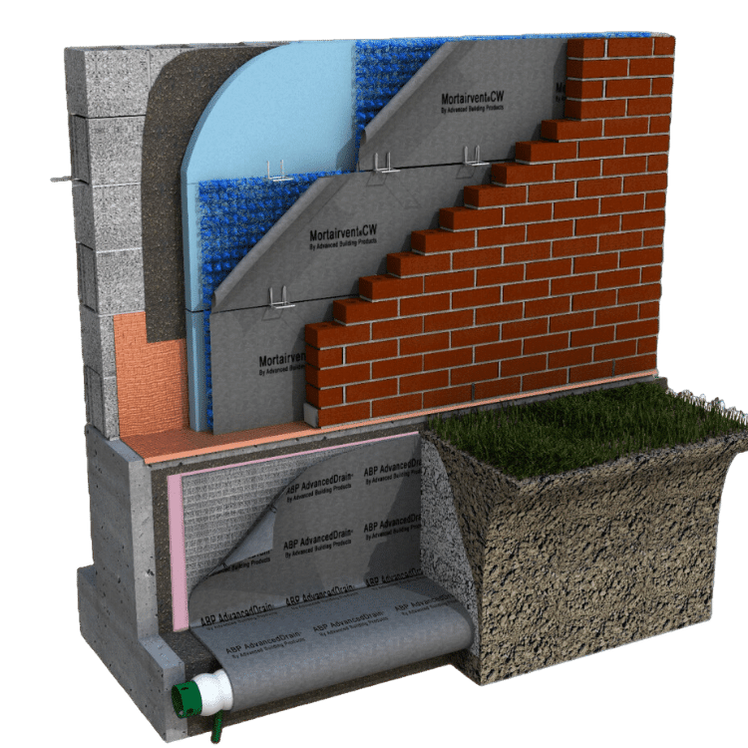

AdvancedDrain® is a drainage composite mat consisting of parallel geometric drainage channels backed with a nonwoven filter fabric designed to eliminate hydrostatic pressure from behind below grade foundation walls, retaining walls, planters, plaza decks and balconies.

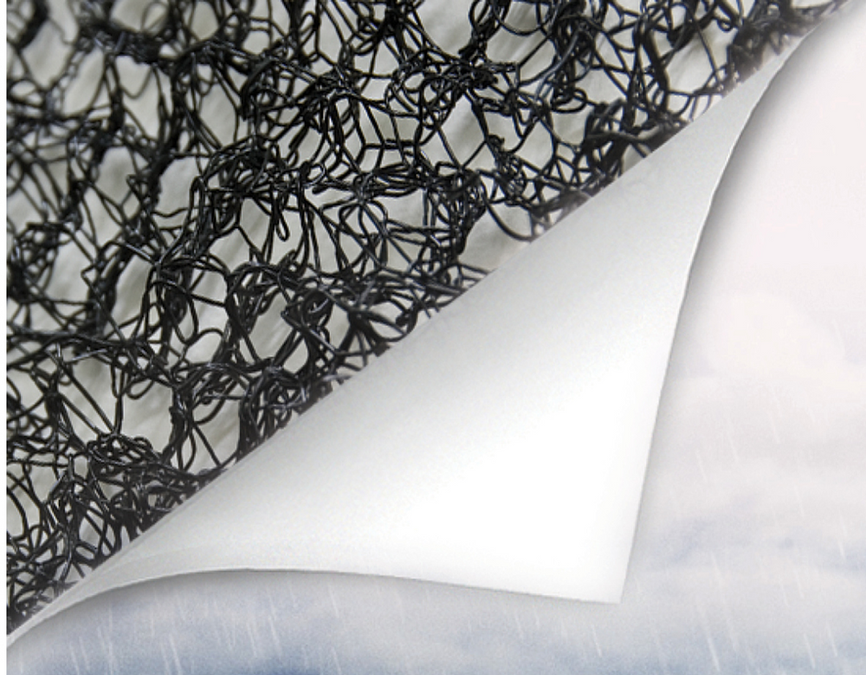

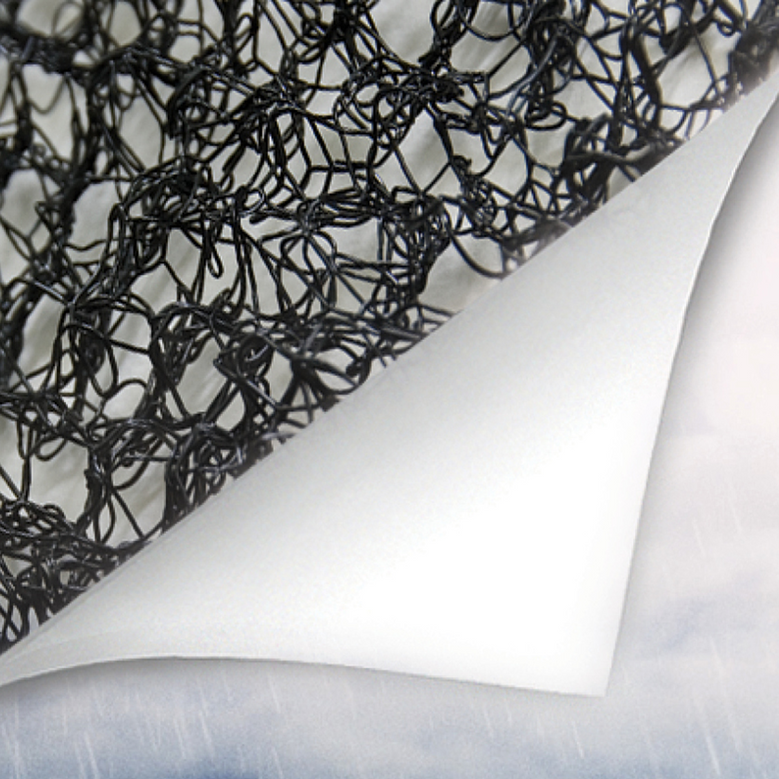

The product is produced from an extruded polymer matrix of tangled, randomly oriented monofilaments. The polymer matrix is then shaped into a series of parallel, porous channels designed to allow flow in all directions. It is then attached (heat bonded) to a polyester nonwoven filter fabric designed to prevent soil or sediment from entering the matrix of the system, while providing ample flow of water.
Applications:

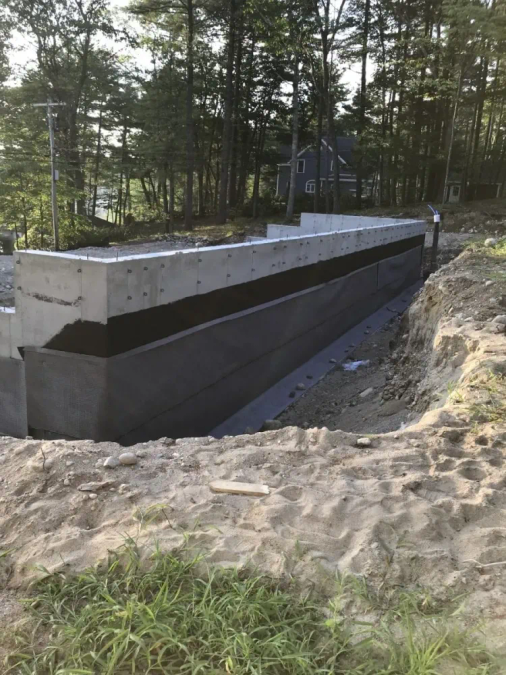

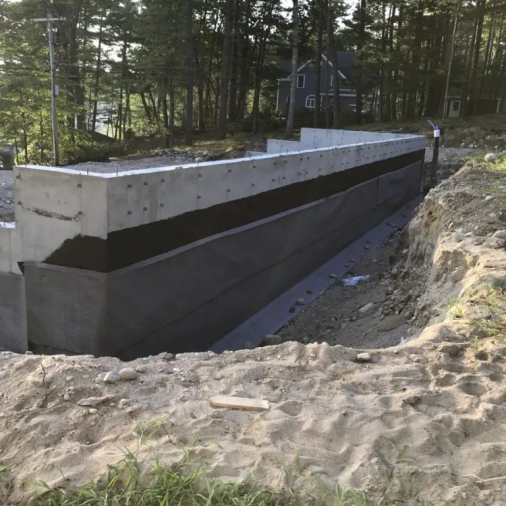

- Residential foundation walls
- Retaining walls

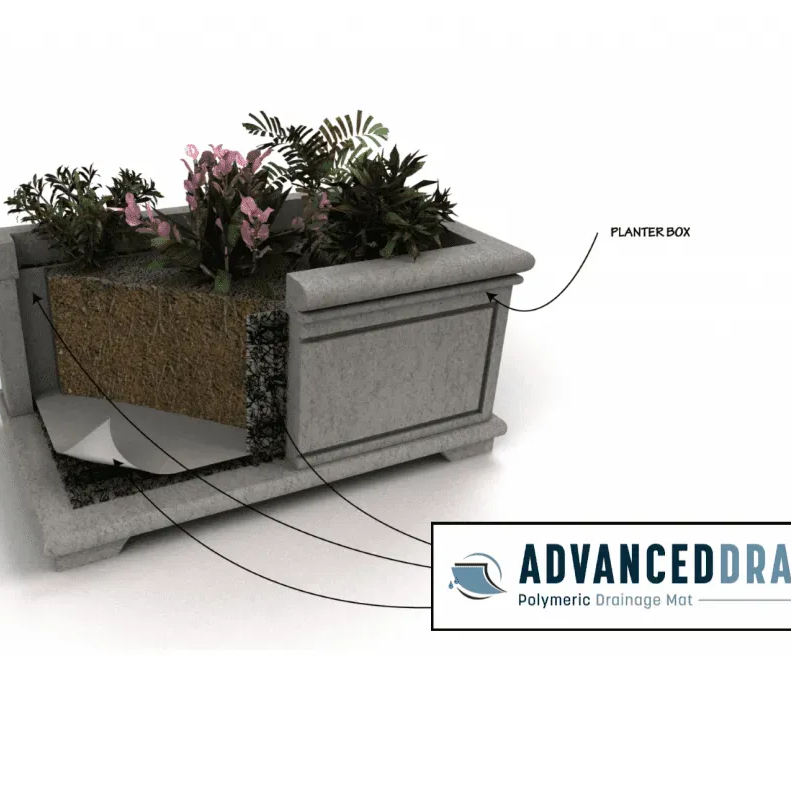

- Planters

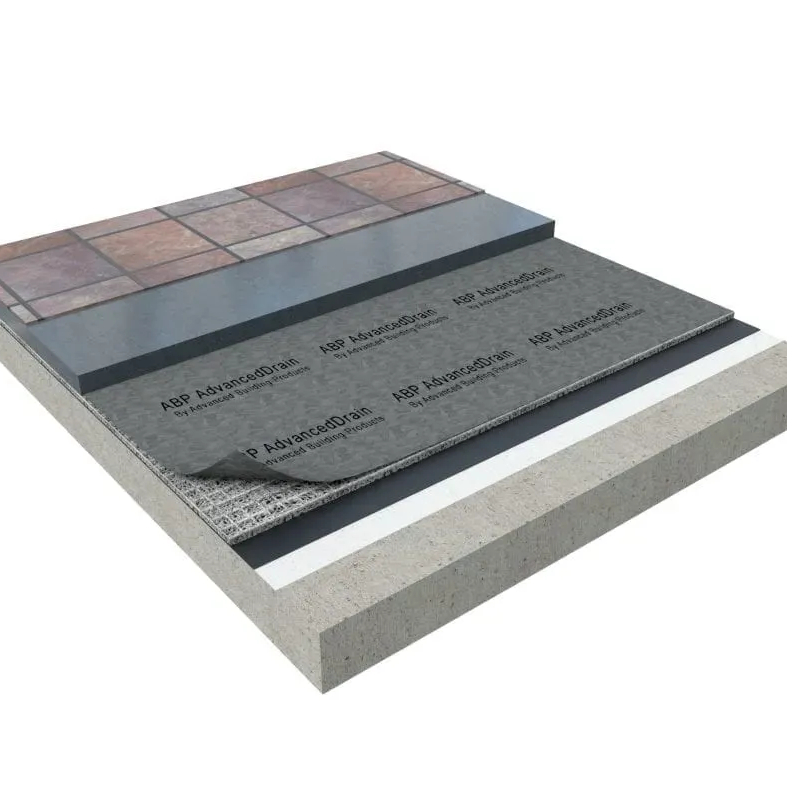

- Plaza decks
- Balconies
Features & Benefits
- Filtration and drainage in one package.
- Lightweight, easy to handle and install.
- Installation in either vertical or horizontal direction.
- Simple installation with either construction adhesive or termination bar.
- Sufficient fabric overlap for sealing adjacent panels with construction adhesive to prevent soil intrusion at the joints.
- Polymer core resistant to most known solvents and chemicals including acids and bases.
Convenient working width and roll length.
Additional Information, Details, and Resources
Download AdvancedDrain® AIS Sheet
Download AdvancedDrain® MSDS Sheet
AdvancedDrain® LEED Sheet - Call 800-252-2306
Download AdvancedDrain® Data Sheet - Horizontal Applications
Download AdvancedDrain® Data Sheet Below Grade Applications
Download AdvancedDrain® Data Sheet Below Grade Applications (Español)
A. Install composite drainage mats in accordance with manufacturer’s instructions at locations indicated on the Drawings.
B. Install composite drainage mats:
1. To allow flow of water in all directions within drainage core.
2. To prevent soil from entering drainage core while providing ample flow of water.
C. Secure composite drainage mats to surfaces with termination bars in accordance with manufacturer’s instructions.
D. Butt composite drainage mats together without overlapping.
E. Overlap the fabric flap for sealing adjacent composite drainage mats to prevent soil intrusion at joints.
Protect installed composite drainage mats from damage during construction.

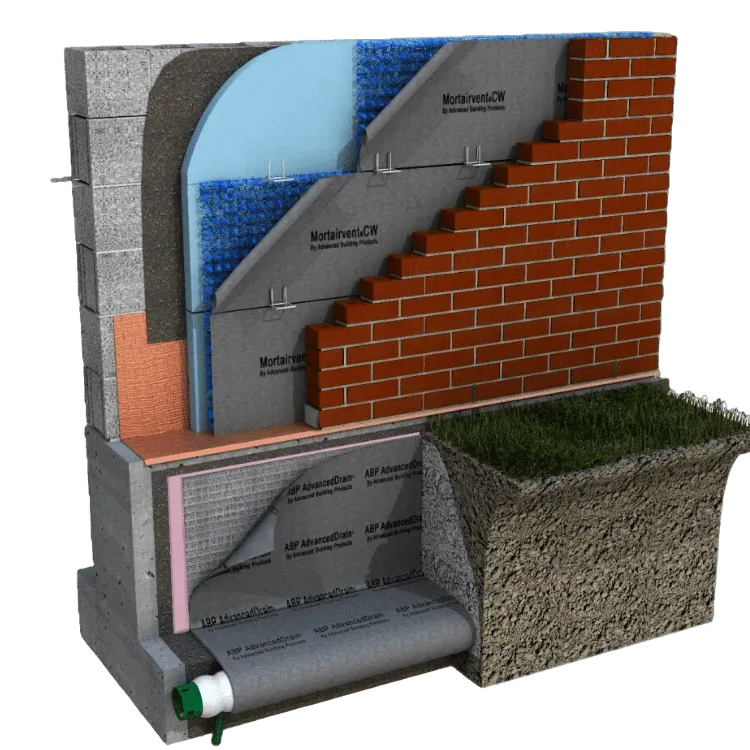

Be sure to run the Advanced Drain over the positive drain pipe.
| Below Grade Drainage Mats | Thickness | Roll Size | Sq. Ft. Per Roll | Rolls Per Pallet | UOM |
|---|---|---|---|---|---|
| Advanced Drain® | .125” | 39.5” X 150’ | 494 | 10 | Sq. Ft. |
| Advanced Drain® | .25” | 39.5” X 135’ | 445 | 8 | Sq. Ft. |
| Advanced Drain® | .4" | 39.5” X 100’ | 330 | 8 | Sq. Ft. |
|
Advanced Drain® |
.5" | 39.5” X 75’ | 247 | 8 | Sq. Ft. |
